Optimised Multi-Band GNSS Protection

SPECTRA-I 400 is optimised for dual-band GNSS protection, supporting:

• L1/L2 protection as the standard configuration.
• Custom band configurations selectable according to customer requirements

This targeted approach ensures robust Position, Navigation, and Timing (PNT) performance under heavy jamming activity.

Integrated, Digital-First Architecture

The SPECTRA-I 400 employs a direct-conversion sampling architecture, bringing the captured GNSS spectrum directly into the digital processing domain. This enables:

• precise suppression of narrowband and structured interference
• efficient digital filtering without excessive RF complexity
• reduced component count and lower power consumption

By integrating the antenna and electronics into a single unit, the system minimises cabling losses, simplifies installation, and improves overall robustness.

Designed for Low SWaP Platforms

SPECTRA-I 400 is specifically engineered for applications where power efficiency, compact form factor, and system simplicity are critical. The optimised architecture delivers effective GNSS protection without the size, weight, and power penalties associated with larger EW-focused solutions.

Typical application areas include unmanned systems, tactical platforms, and other embedded navigation systems requiring dependable GNSS operation under interference.

Key Characteristics

• Integrated Antenna and Electronics (AAE)
  Single-box design reduces integration complexity and improves system robustness.


• 62.5 MHz Instantaneous Bandwidth
  Wideband GNSS capture enables fast detection and mitigation of interference.


• Optimised Dual-Band Protection
  Standard L1/L2 configuration with optional customer-defined band selection.


• SBAS Correction
  Supports SBAS inputs to boost navigational precision and reliability.


• Adaptive Digital Filtering
  Precision suppression of narrowband and structured jammers.


• Low Power Consumption
  Architecture optimised for SWaP-constrained platforms.

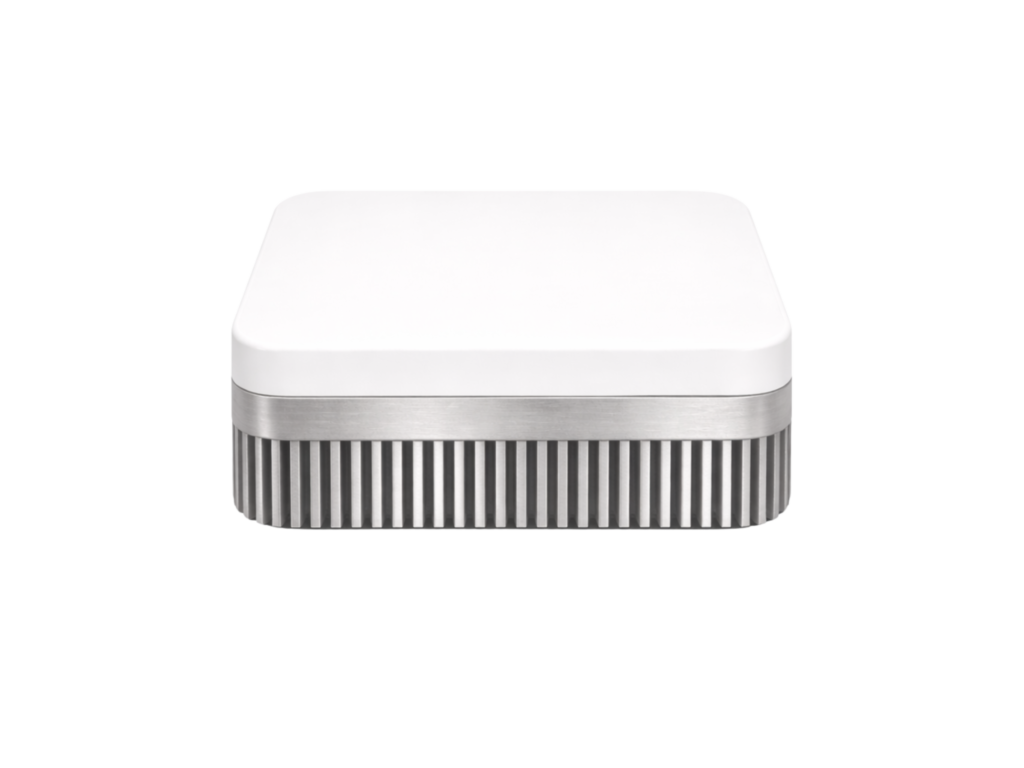

• Ultra-Slim Low-SWaP Design
  Compact 115×95×30 mm ultra-slim form factor with ~350 g weight.


• Receiver-Agnostic Architecture
  Designed to operate with customer-provided GNSS receivers, enabling flexible system architectures, form-fit-function replacements, and seamless integration into existing navigation stacks.
  An optional internal GNSS receiver is available upon request.



• Ruggedised & Protected Electronics
  Integrated over-voltage protection (OVP), over-current protection (OCP), and reverse polarity protection for operational safety and mission reliability.


• Military Standards Compliance
  Qualified to MIL-STD-461G (EMI/EMC) and MIL-STD-810H (Environmental) standards.
